5.0kW R32 Low Static Ducted Type Bulkhead System
5.0kW R32 Low Static Ducted Type Bulkhead System
5.0kW R32 Low Static Ducted Type Bulkhead System
5.0kW R32 Low Static Ducted Type Bulkhead System
5.0kW R32 Low Static Ducted Type Bulkhead System
5.0kW R32 Low Static Ducted Type Bulkhead System
Model No.
TDSM50HVAG
  • 7 Years Warranty (Domestic application)
  • 2 Years Warranty (Commercial application)
  • Cooling Capacity: 5.00kW
  • Heating Capacity: 5.50kW
  • Dynamic Temperature Control
  • In-built WiFi
  • Goldfin Coating on Indoor Unit evaporator coil
  • In-Built Drain Pump
  • BMS Control Capability
  • Wired Wall Controller

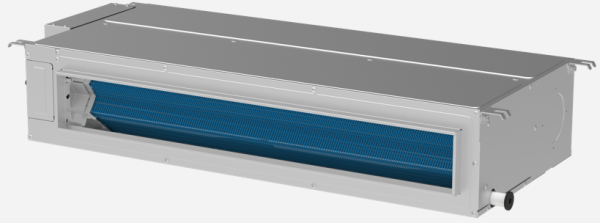

The TDSM50HVAG (5.0kW) Low Static Ducted Indoor Unit is compact and discreet designed for concealed installation in bulkheads or ceiling voids, making it ideal for applications where aesthetics are a priority. Its external low static pressure design allows for flexible ducting options, providing even and efficient air distribution across small rooms, such as bedrooms and home offices. Inverter technology ensures precise temperature control while reducing energy consumption, delivering quiet and efficient climate management. With WiFi connectivity at the Wired Wall-Mounted Controller, this unit offers seamless operation, smart home integration, and enhanced comfort.
WHERE TO BUY
CONTACT US

Features

Specifications

Manual

Warranty
  • 7 Years Warranty (Domestic application)
  • 2 Years Warranty (Commercial application)
  • Cooling Capacity: 5.00kW
  • Heating Capacity: 5.50kW
  • Dynamic Temperature Control
  • In-built WiFi
  • Goldfin Coating on Indoor Unit evaporator coil
  • In-Built Drain Pump
  • BMS Control Capability
  • Wired Wall Controller
TECO Model － TDSM50HVAG
Type － Duct
Cooling Capacity kW 5.00
Heating Capacity kW 5.50
Air flow volume(H) m3/h 840
Air flow volume(H) L/s 233.33
Air flow volume(M) m3/h 790
Air flow volume(M) L/s 219.44
Air flow volume(L) m3/h 750
Air flow volume(L) L/s 208.33
Standard Static Pressure Pa 25
Max. Static Pressure Pa 60
Sound Pressure Level (SS) dB (A) 41
Sound Pressure Level (H) dB(A) 39
Sound Pressure Level (M) dB(A) 38
Sound Pressure Level (L) dB(A) 37
Sound Power Level (SS) dB (A) 57
Sound Power Level (H) dB(A) 55
Sound Power Level (M) dB(A) 54
Sound Power Level (L) dB(A) 53
Dehumidifying Volume L/h 1.8
Air Flow Volume(SS) m3/h 880
Air Flow Volume(SS) L/s 244.44
Rated Voltage V 220-240
Rated Frequency Hz 50
Phases － 1
Min/Max Voltage V 198/264
Cross-sectional Area of Power Cable Conductor mm2 0.75
Recommended Power Cable(Core) N 4
Fuse Current A 5
Fan Type － Centrifugal
Fan Quantity － 3
Fan Diameter-height mm φ138.6-143
Fan Diameter-height inch φ5.46-5.63
Motor Insulation Class － E
Motor Safe Class － IP23
Fan Motor Drive Type － Direct
Fan Motor Speed rpm Cooling：1300/1250/1200/1180/1150/1130/980 Heating：1300/1250/1200/1180/1150/1130/980
Fan Motor Power Input W 75
Sound Pressure Level (SL) dB(A) 34
Sound Power Level (MH) dB(A) 55
Sound Power Level (ML) dB(A) 54
Sound Power Level (SL) dB(A) 50
Air Filter － PP
Air Filter Size(L×W/NO.) mm 490×190/2
Gas Pipe(to indoor unit) mm φ12
Gas Pipe(to indoor unit) inch 1/2″
Liquid pipe mm φ6
Liquid pipe inch 1/4″
Connection method － Flare Connection
Drain Connection (outer diameter) mm φ26
Dimension of Outline(W) mm 1010
Dimension of Outline(D) mm 450
Dimension of Outline(H) mm 200
Dimension of Carton Box(L) mm 1305
Dimension of Carton Box(W) mm 565
Dimension of Carton Box(H) mm 260
Dimension of Package(L) mm 1308
Dimension of Package(W) mm 568
Dimension of Package(H) mm 275
Net Weight kg 25.0
Gross Weight kg 30.0
Indoor Unit Loading Quantity ( 20’ Container ) unit 128
Indoor Unit Loading Quantity ( 40’ Container ) unit 288
Indoor Unit Loading Quantity ( 40’ High Cube Container ) unit 324
Outdoor Unit Stacked Layers － 8
Automatic Operation YES
Cooling YES
Heating YES
Dehumidify YES
Sleep Mode Three kinds of sleep curve
Timer YES
Energy Saving YES
Fan YES
Auto Restart YES
Auto Fan YES
8℃ Heating Mode YES
Quiet YES
I Feel YES
Turbo Cooling YES
Intelligent Preheating YES
Dry Anti-Mildew Design YES
Self Diagnosis YES
With Access Control System YES
With Water Pump YES
Switchover Between High and Low Static Pressures YES
Optional Ambient Temperature Sensor YES
Common Static Pressure YES
Turbo YES
Clock YES
Temperature YES
Lock YES
Intelligent Defrosting YES
Force Defrosting YES
Low Voltage Startup YES
Multi Speeds Speed 7

Features
  • 7 Years Warranty (Domestic application)
  • 2 Years Warranty (Commercial application)
  • Cooling Capacity: 5.00kW
  • Heating Capacity: 5.50kW
  • Dynamic Temperature Control
  • In-built WiFi
  • Goldfin Coating on Indoor Unit evaporator coil
  • In-Built Drain Pump
  • BMS Control Capability
  • Wired Wall Controller

Specifications
TECO Model － TDSM50HVAG
Type － Duct
Cooling Capacity kW 5.00
Heating Capacity kW 5.50
Air flow volume(H) m3/h 840
Air flow volume(H) L/s 233.33
Air flow volume(M) m3/h 790
Air flow volume(M) L/s 219.44
Air flow volume(L) m3/h 750
Air flow volume(L) L/s 208.33
Standard Static Pressure Pa 25
Max. Static Pressure Pa 60
Sound Pressure Level (SS) dB (A) 41
Sound Pressure Level (H) dB(A) 39
Sound Pressure Level (M) dB(A) 38
Sound Pressure Level (L) dB(A) 37
Sound Power Level (SS) dB (A) 57
Sound Power Level (H) dB(A) 55
Sound Power Level (M) dB(A) 54
Sound Power Level (L) dB(A) 53
Dehumidifying Volume L/h 1.8
Air Flow Volume(SS) m3/h 880
Air Flow Volume(SS) L/s 244.44
Rated Voltage V 220-240
Rated Frequency Hz 50
Phases － 1
Min/Max Voltage V 198/264
Cross-sectional Area of Power Cable Conductor mm2 0.75
Recommended Power Cable(Core) N 4
Fuse Current A 5
Fan Type － Centrifugal
Fan Quantity － 3
Fan Diameter-height mm φ138.6-143
Fan Diameter-height inch φ5.46-5.63
Motor Insulation Class － E
Motor Safe Class － IP23
Fan Motor Drive Type － Direct
Fan Motor Speed rpm Cooling：1300/1250/1200/1180/1150/1130/980 Heating：1300/1250/1200/1180/1150/1130/980
Fan Motor Power Input W 75
Sound Pressure Level (SL) dB(A) 34
Sound Power Level (MH) dB(A) 55
Sound Power Level (ML) dB(A) 54
Sound Power Level (SL) dB(A) 50
Air Filter － PP
Air Filter Size(L×W/NO.) mm 490×190/2
Gas Pipe(to indoor unit) mm φ12
Gas Pipe(to indoor unit) inch 1/2″
Liquid pipe mm φ6
Liquid pipe inch 1/4″
Connection method － Flare Connection
Drain Connection (outer diameter) mm φ26
Dimension of Outline(W) mm 1010
Dimension of Outline(D) mm 450
Dimension of Outline(H) mm 200
Dimension of Carton Box(L) mm 1305
Dimension of Carton Box(W) mm 565
Dimension of Carton Box(H) mm 260
Dimension of Package(L) mm 1308
Dimension of Package(W) mm 568
Dimension of Package(H) mm 275
Net Weight kg 25.0
Gross Weight kg 30.0
Indoor Unit Loading Quantity ( 20’ Container ) unit 128
Indoor Unit Loading Quantity ( 40’ Container ) unit 288
Indoor Unit Loading Quantity ( 40’ High Cube Container ) unit 324
Outdoor Unit Stacked Layers － 8
Automatic Operation YES
Cooling YES
Heating YES
Dehumidify YES
Sleep Mode Three kinds of sleep curve
Timer YES
Energy Saving YES
Fan YES
Auto Restart YES
Auto Fan YES
8℃ Heating Mode YES
Quiet YES
I Feel YES
Turbo Cooling YES
Intelligent Preheating YES
Dry Anti-Mildew Design YES
Self Diagnosis YES
With Access Control System YES
With Water Pump YES
Switchover Between High and Low Static Pressures YES
Optional Ambient Temperature Sensor YES
Common Static Pressure YES
Turbo YES
Clock YES
Temperature YES
Lock YES
Intelligent Defrosting YES
Force Defrosting YES
Low Voltage Startup YES
Multi Speeds Speed 7

Manual

Warranty

Ideal Use Cases
  • Large apartments & townhouses – Provides efficient and discreet climate control for open-plan living spaces.
  • Boutique retail stores & cafés – Ensures a comfortable environment for customers while maintaining a sleek aesthetic.
  • Corporate meeting rooms & office spaces – Offers consistent temperature control without visible indoor units.
  • Hotel suites & luxury accommodations – Delivers premium climate management with quiet and concealed installation.

Ideal Use Cases
  • Large apartments & townhouses – Provides efficient and discreet climate control for open-plan living spaces.
  • Boutique retail stores & cafés – Ensures a comfortable environment for customers while maintaining a sleek aesthetic.
  • Corporate meeting rooms & office spaces – Offers consistent temperature control without visible indoor units.
  • Hotel suites & luxury accommodations – Delivers premium climate management with quiet and concealed installation.
