2.2kW Reverse Cycle
2.2kW Reverse Cycle
2.2kW Reverse Cycle
2.2kW Reverse Cycle
Model No.
TWW22HFAT
  • Wireless Remote
  • Gold Fin Protection
  • 3 in 1 Filter
  • 3 in 1 Filter
  • ECO Mode
With a robust 2.2kW cooling and heating capacity, the TECO 2.2kW Reverse Cycle Window Wall Air Conditioner is engineered to deliver year-round comfort, making it an ideal choice for both cooling in hot summers and warming in chilly winters. The TWW22HFAT boasts features like an intuitive remote control, energy-saving operation modes, and an advanced air filtration system to ensure optimal air quality. Designed for easy installation in a variety of window and wall configurations, this air conditioner meets high standards of reliability and performance.
WHERE TO BUY
CONTACT US

Features

Specifications

Dimensions

Warranty
  • Gold Fin Protection guards the condenser, enhancing durability and performance for years of dependable cooling.
  • Reverse Cycle Technology: Provides both heating and cooling, ensuring comfort throughout the year.
  • Energy Efficiency: ECO Mode is designed to save you money. When your air conditioner reaches your chosen temperature, it turns off the compressor and fan. To keep the temperature steady, the fan will occasionally run. This feature lowers your energy costs without sacrificing comfort.
  • Clean & Healthy Air: The 3-in-1 Filter combines photocatalyst, active carbon, and static-free filtration, delivering cleaner, healthier air to your home.
  • Even Air Distribution with Auto Swing Airflow, which automatically oscillates to maintain the ideal room temperature.
  • With Auto Restart, your preferred settings are restored after a power outage, so you can stay comfortable without lifting a finger.
  • The Auto Air Flow system intelligently distributes air left and right, guaranteeing every corner of your room is evenly cooled. Prefer a fixed direction? You’ve got that option too.
  • The rotary compressor ensures ultra-quiet operation, ensuring peaceful relaxation or uninterrupted sleep.
  • The wireless remote control right at your fingertips, so you never have to leave your spot to adjust your comfort settings.
  • Restful Sleep: Sleep Mode gradually fine-tunes the temperature for the optimal sleeping environment, so you wake up refreshed.
  • Hassle-Free Installation: Smart design with a slide-out casing allows for quick and easy installation and servicing.

Additional Benefits:

Intuitive design ensures accessible functions, ideal for all ages.

Model TWW22HFAT
Cooling / Heating Capacity (kW) 2.2 2.05
Power Supply (v) 220~240
Phase – Frequency (Ph – Hz) 1 – 50
Plug Size (A) 10
Cooling / Heating Run Current (A) 3.1 2.6
Cooling / Heating Input (W) 680 600
Moisture Removal (L/Hr) 0.8

A.E.E.R

 3.21
A.C.O.P 3.39

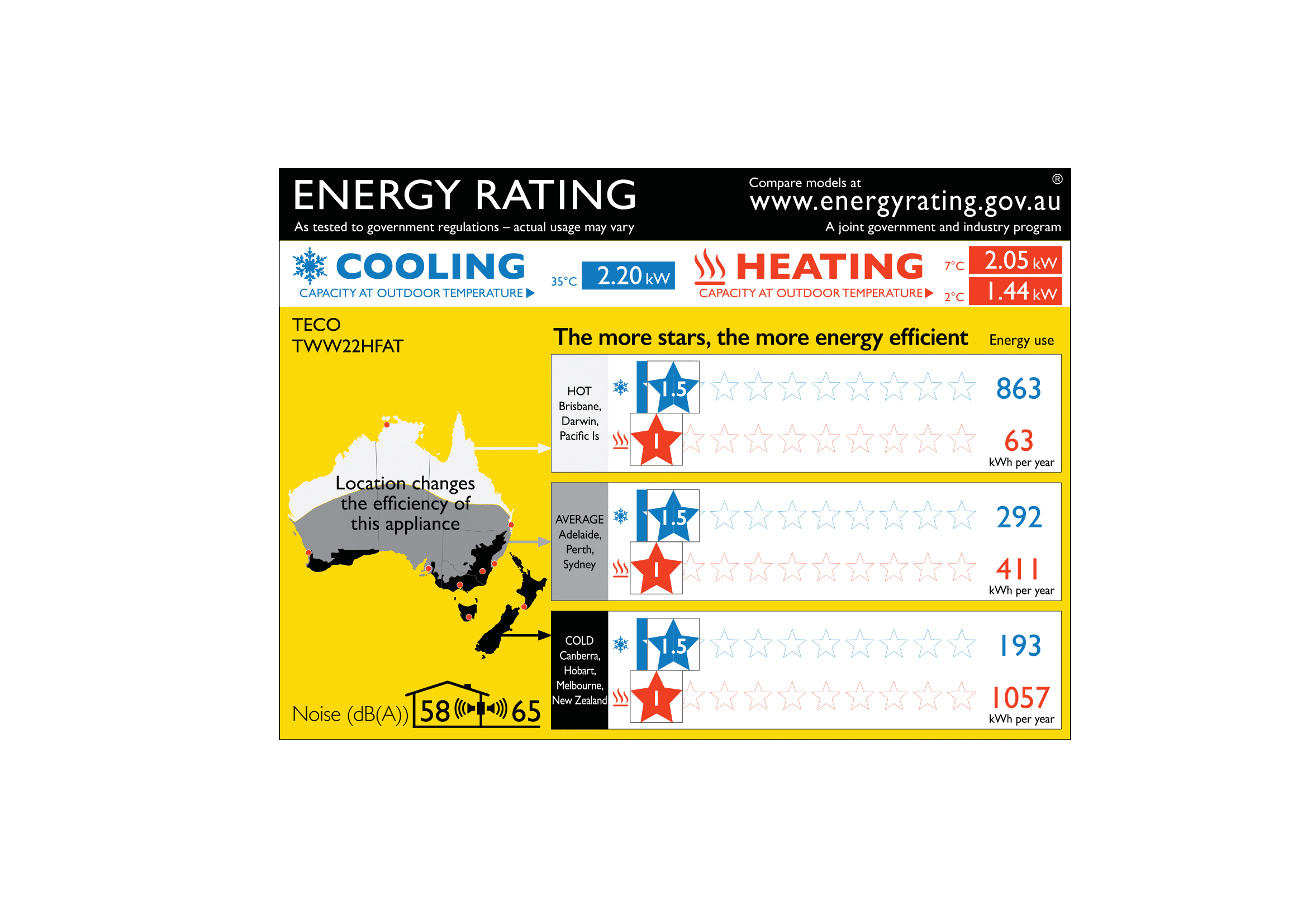

Cooling / Heating Star Rating 1.5 / 1.5 / 1.5 1.5 / 1.5 / 1.5
Fan Speeds 3 + Auto
Indoor Cooling Air Flow (Max) (L/s) 114
Compressor Type Rotary
Unit Dimensions (H x W x D) (mm) 380 x 600 x 560
Net Weight Kg 33
Recommended cut-out size (H x W) mm 385 x 605
ID Sound Power dBA@1m 56
OD Sound Power dBA@1m 63
Refrigerant Type R410A
Cooling / Heating Outdoor Operating Temp. °C 18~43 -7~27
  • H 380 x W 600 x D 560 mm
  • Net/Gross Weight: 33/36kg
  • Recommended cut-out size (HxW):
  • 385 x 605mm

Features
  • Gold Fin Protection guards the condenser, enhancing durability and performance for years of dependable cooling.
  • Reverse Cycle Technology: Provides both heating and cooling, ensuring comfort throughout the year.
  • Energy Efficiency: ECO Mode is designed to save you money. When your air conditioner reaches your chosen temperature, it turns off the compressor and fan. To keep the temperature steady, the fan will occasionally run. This feature lowers your energy costs without sacrificing comfort.
  • Clean & Healthy Air: The 3-in-1 Filter combines photocatalyst, active carbon, and static-free filtration, delivering cleaner, healthier air to your home.
  • Even Air Distribution with Auto Swing Airflow, which automatically oscillates to maintain the ideal room temperature.
  • With Auto Restart, your preferred settings are restored after a power outage, so you can stay comfortable without lifting a finger.
  • The Auto Air Flow system intelligently distributes air left and right, guaranteeing every corner of your room is evenly cooled. Prefer a fixed direction? You’ve got that option too.
  • The rotary compressor ensures ultra-quiet operation, ensuring peaceful relaxation or uninterrupted sleep.
  • The wireless remote control right at your fingertips, so you never have to leave your spot to adjust your comfort settings.
  • Restful Sleep: Sleep Mode gradually fine-tunes the temperature for the optimal sleeping environment, so you wake up refreshed.
  • Hassle-Free Installation: Smart design with a slide-out casing allows for quick and easy installation and servicing.

Additional Benefits:

Intuitive design ensures accessible functions, ideal for all ages.

Specifications
Model TWW22HFAT
Cooling / Heating Capacity (kW) 2.2 2.05
Power Supply (v) 220~240
Phase – Frequency (Ph – Hz) 1 – 50
Plug Size (A) 10
Cooling / Heating Run Current (A) 3.1 2.6
Cooling / Heating Input (W) 680 600
Moisture Removal (L/Hr) 0.8

A.E.E.R

 3.21
A.C.O.P 3.39
Cooling / Heating Star Rating 1.5 / 1.5 / 1.5 1.5 / 1.5 / 1.5
Fan Speeds 3 + Auto
Indoor Cooling Air Flow (Max) (L/s) 114
Compressor Type Rotary
Unit Dimensions (H x W x D) (mm) 380 x 600 x 560
Net Weight Kg 33
Recommended cut-out size (H x W) mm 385 x 605
ID Sound Power dBA@1m 56
OD Sound Power dBA@1m 63
Refrigerant Type R410A
Cooling / Heating Outdoor Operating Temp. °C 18~43 -7~27

Dimensions
  • H 380 x W 600 x D 560 mm
  • Net/Gross Weight: 33/36kg
  • Recommended cut-out size (HxW):
  • 385 x 605mm

Warranty
5.2kW Inverter Reverse Cycle
GOLD Fin Protection

The GOLD Fin Protection on TECO air conditioners is designed to enhance durability by protecting the outdoor coils from corrosion. This added layer of protection helps maintain the unit’s efficiency, ensuring it continues to perform optimally even in harsh environments. It also works in tandem with the Self Clean function, keeping the evaporator coils cleaner for longer, which improves overall air quality and system performance.

Built-In Wi-Fi

With Built-In Wi-Fi, you can easily control your TECO air conditioner from anywhere using your smartphone or tablet. Whether you’re at home or out and about, the intuitive mobile app lets you adjust the temperature, change settings, and even schedule operations remotely. It’s also compatible with popular smart home systems like Google Home and Amazon Alexa, so you can manage your indoor climate with simple voice commands.

5.2kW Inverter Reverse Cycle
5.2kW Inverter Reverse Cycle
5.2kW Inverter Reverse Cycle
2.2kW Reverse Cycle
MEPS (Minimum Energy Performance Standards)

TECO air conditioners meet Australia’s Minimum Energy Performance Standards (MEPS), ensuring they deliver excellent energy efficiency and performance. These standards, regulated under the Greenhouse and Energy Minimum Standards Act, guarantee that TECO air conditioners operate effectively across Australia’s varied climate zones, helping you save on energy bills while keeping your home comfortable year-round.

2.6kW Reverse Cycle
Easy to Use

Simple controls for ease of use.

2.6kW Reverse Cycle
Auto Restart

Settings are restored after a power failure.

2.6kW Reverse Cycle
Auto Air Flow

Left and Right automatic airflow ensures even air flow distrubtion throughout the room. Turn it off for a fixed flow direction

2.6kW Reverse Cycle
Rotary Compressor reduces noise & vibrations

For years, Australians have affectionately referred to the old outdated models of decades past, as the "Window Rattler". TECO has been at the forefront of improving this product type by fitting them with Rotary Compressors to reduce the noise and vibration when in use

2.6kW Reverse Cycle
Easy Installation & Service Access

With a purpose built slide out casing - this product is easy to install and access for service

Maintenance Tips

Ideal Use Cases
  • Regular Cleaning: Ensure that the air filter is cleaned every two weeks. Simply remove it, wash with warm, soapy water, rinse, and let it dry completely before reinstalling.
  • Check the Coils: Inspect the evaporator and condenser coils at the beginning and end of the season. Clean them as needed to prevent build-up that can impair performance.
  • Drainage: Ensure the drainage system is not obstructed and is functioning properly to avoid water damage or inefficiencies.
  • Remote Control: Check the remote control’s batteries periodically and replace them as needed to ensure uninterrupted operation.
  • Professional Servicing: Schedule a professional check-up at least once a year to keep the unit in top condition and to address any potential issues.

The TECO TWW22HFAT is perfect for small to medium-sized rooms. Whether you’re looking to cool a bedroom, your home office, or a guest room, this air conditioner provides a seamless climate control solution. It’s equally adept at maintaining a comfortable temperature in your living room during harsh winters, providing a snug and warm environment for family gatherings or a relaxing evening in front of the TV.

Maintenance Tips
  • Regular Cleaning: Ensure that the air filter is cleaned every two weeks. Simply remove it, wash with warm, soapy water, rinse, and let it dry completely before reinstalling.
  • Check the Coils: Inspect the evaporator and condenser coils at the beginning and end of the season. Clean them as needed to prevent build-up that can impair performance.
  • Drainage: Ensure the drainage system is not obstructed and is functioning properly to avoid water damage or inefficiencies.
  • Remote Control: Check the remote control’s batteries periodically and replace them as needed to ensure uninterrupted operation.
  • Professional Servicing: Schedule a professional check-up at least once a year to keep the unit in top condition and to address any potential issues.

Ideal Use Cases

The TECO TWW22HFAT is perfect for small to medium-sized rooms. Whether you’re looking to cool a bedroom, your home office, or a guest room, this air conditioner provides a seamless climate control solution. It’s equally adept at maintaining a comfortable temperature in your living room during harsh winters, providing a snug and warm environment for family gatherings or a relaxing evening in front of the TV.
