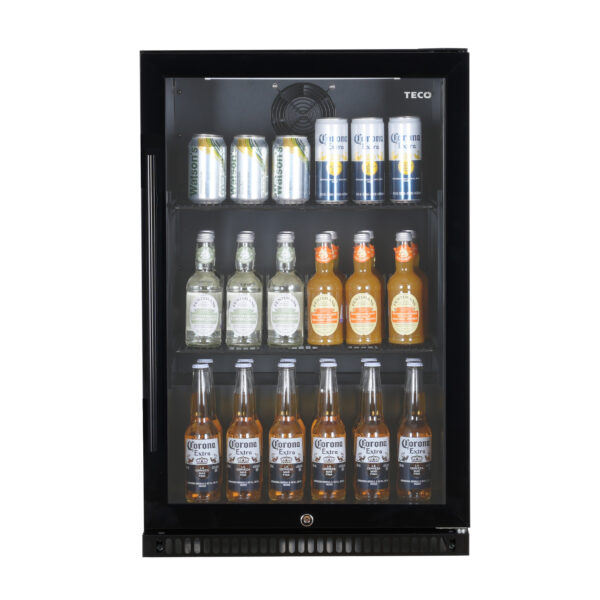

133L Single Door Backbar Bar Fridge

Model No.

TBF133BBABAH

Triple Glazed Glass Door with LOW E Film Glass
Digital Control
LED Internal Light in Cabinet
Door Lock
Fan Assisted / Auto-defrost
Adjustable Chrome Metal Shelves x 2

The TECO 133L Single Door Backbar Beverage Cooler is designed for those who want the perfect balance of functionality, durability, and style. With its black metal exterior and triple-glazed glass door featuring a low E film, this cooler not only looks sleek but also delivers high performance, keeping your beverages at the ideal temperature, even in warm settings. Its 133L capacity ensures you can store a wide variety of drinks, making it the ultimate addition to your entertainment space.

Features

Specifications

Brochure

Manual

Warranty

133L Capacity: Stores up to 140 x 330ml bottles or 78 x 500ml bottles, giving you plenty of space for all your favourite beverages.
Triple Glazed Glass Door with Low E Film: Provides excellent insulation, keeping your drinks cool while reducing energy consumption, and allows you to easily see the contents.
Digital Temperature Control: Easy-to-use digital controller ensures your drinks stay at the perfect temperature between 0°C and 10°C.
Fan-Assisted Cooling and Auto-Defrost: Ensures consistent cooling and reduces the need for manual defrosting, offering convenience and efficiency.
Versatile Placement: Suitable for both free-standing and under-bench installations, providing flexibility in your space.
Lockable Door: Keeps your beverages secure, especially useful for commercial settings.
LED Lighting: Bright LED lighting inside the cabinet makes it easy to find what you’re looking for, even at night.
Adjustable Feet: Ensures stability on uneven surfaces, perfect for both indoor and alfresco areas.

TECO Model	TBF133BBABAH
EAN	9346998007135
Product Type	Backbar
Description	133L Single Door Backbar Alfresco Black Beverage Cooler
Net capacity 330ml bottle pack out (Ø70 x H120mm) 500ml bottle pack out (Ø70 x H170mm) facing per shelf	133 L 140pcs 78pcs 6pcs
Temp range	0C ～ 10C
★M1 rated, -1C to 5C, food/dairy	Yes
Climate class for cooling performa	N, up to 38C ambient temp
★Climate class for safety regulation	T
★IP rating	IP24
Refrigerant (Amount g)	R600a ( 55g)
Cooling type	fan assistant,auto-defrost
Free-standing / Under-bench	★Free-standing★Under-bench
Shelf(pcs)	2 Chrome Shelves
Controller	digital
Light	LED light in cabinet
Lock	yes
Cabinet interior	Black Coated Metal Interior
Cabinet Exterior	Black metal sides and back
Cabinet Top Lid	Black metal
Door	Black plastic door frame, Triple glazed glass door, Low E film
Self closing door	yes
Handle	Black SS long bar handle
Foot/Castor	Adjustable feet
Packaging	Carton box
Net Dimensions (H/W/D)	870Hx555Wx496Dmm
Gross Dimensions (H/W/D)	895Hx605Wx564Dmm
Net /Gross Weight (kg)	37/39.5
Loading Qty (standard packaging)
20GP/40GP/40HQ	72 / 144 / 144
MOQ (40HQ)	144
Certificate	ETL,CE,CB,ROHS,SAA,SASO,MEPS ★Commercial & Residential

TECO-HAD-Product-Catalogue

240824 TBF133BBABAH and TBF210BBABAH User’s Manual

TECO_Home_Appliances_Warranty Information Form

TECO_Home_Appliances_Commercial_Warranty

TECO_Home_Appliances_Domestic_Warranty

Features

133L Capacity: Stores up to 140 x 330ml bottles or 78 x 500ml bottles, giving you plenty of space for all your favourite beverages.
Triple Glazed Glass Door with Low E Film: Provides excellent insulation, keeping your drinks cool while reducing energy consumption, and allows you to easily see the contents.
Digital Temperature Control: Easy-to-use digital controller ensures your drinks stay at the perfect temperature between 0°C and 10°C.
Fan-Assisted Cooling and Auto-Defrost: Ensures consistent cooling and reduces the need for manual defrosting, offering convenience and efficiency.
Versatile Placement: Suitable for both free-standing and under-bench installations, providing flexibility in your space.
Lockable Door: Keeps your beverages secure, especially useful for commercial settings.
LED Lighting: Bright LED lighting inside the cabinet makes it easy to find what you’re looking for, even at night.
Adjustable Feet: Ensures stability on uneven surfaces, perfect for both indoor and alfresco areas.

Specifications

TECO Model	TBF133BBABAH
EAN	9346998007135
Product Type	Backbar
Description	133L Single Door Backbar Alfresco Black Beverage Cooler
Net capacity 330ml bottle pack out (Ø70 x H120mm) 500ml bottle pack out (Ø70 x H170mm) facing per shelf	133 L 140pcs 78pcs 6pcs
Temp range	0C ～ 10C
★M1 rated, -1C to 5C, food/dairy	Yes
Climate class for cooling performa	N, up to 38C ambient temp
★Climate class for safety regulation	T
★IP rating	IP24
Refrigerant (Amount g)	R600a ( 55g)
Cooling type	fan assistant,auto-defrost
Free-standing / Under-bench	★Free-standing★Under-bench
Shelf(pcs)	2 Chrome Shelves
Controller	digital
Light	LED light in cabinet
Lock	yes
Cabinet interior	Black Coated Metal Interior
Cabinet Exterior	Black metal sides and back
Cabinet Top Lid	Black metal
Door	Black plastic door frame, Triple glazed glass door, Low E film
Self closing door	yes
Handle	Black SS long bar handle
Foot/Castor	Adjustable feet
Packaging	Carton box
Net Dimensions (H/W/D)	870Hx555Wx496Dmm
Gross Dimensions (H/W/D)	895Hx605Wx564Dmm
Net /Gross Weight (kg)	37/39.5
Loading Qty (standard packaging)
20GP/40GP/40HQ	72 / 144 / 144
MOQ (40HQ)	144
Certificate	ETL,CE,CB,ROHS,SAA,SASO,MEPS ★Commercial & Residential

Brochure

TECO-HAD-Product-Catalogue

Manual

240824 TBF133BBABAH and TBF210BBABAH User’s Manual

Warranty

TECO_Home_Appliances_Warranty Information Form

TECO_Home_Appliances_Commercial_Warranty

TECO_Home_Appliances_Domestic_Warranty

GOLD Fin Protection

The GOLD Fin Protection on TECO air conditioners is designed to enhance durability by protecting the outdoor coils from corrosion. This added layer of protection helps maintain the unit’s efficiency, ensuring it continues to perform optimally even in harsh environments. It also works in tandem with the Self Clean function, keeping the evaporator coils cleaner for longer, which improves overall air quality and system performance.

Built-In Wi-Fi

With Built-In Wi-Fi, you can easily control your TECO air conditioner from anywhere using your smartphone or tablet. Whether you’re at home or out and about, the intuitive mobile app lets you adjust the temperature, change settings, and even schedule operations remotely. It’s also compatible with popular smart home systems like Google Home and Amazon Alexa, so you can manage your indoor climate with simple voice commands.

MEPS (Minimum Energy Performance Standards)

TECO air conditioners meet Australia’s Minimum Energy Performance Standards (MEPS), ensuring they deliver excellent energy efficiency and performance. These standards, regulated under the Greenhouse and Energy Minimum Standards Act, guarantee that TECO air conditioners operate effectively across Australia’s varied climate zones, helping you save on energy bills while keeping your home comfortable year-round.

Maintenance Tips

Ideal Use Cases

Regular Cleaning: Wipe down the interior and exterior regularly with a damp cloth and mild detergent. This helps prevent buildup and maintains a clean appearance.
Defrost as Needed: The auto-defrost function handles most of the frost buildup, but periodically check to ensure no excessive frost is forming. If necessary, defrost manually to maintain efficiency.
Check Door Seal: Ensure the door seal is clean and free from obstructions to maintain a tight seal. This will help keep the temperature consistent and reduce energy use.
Keep Proper Ventilation: Ensure there’s sufficient space around the back and sides of the cooler to allow proper airflow, especially in under-bench installations. This helps prevent overheating and maintains efficient cooling.
Avoid Overloading: Do not overload the shelves, as this can obstruct airflow and reduce cooling performance. Proper spacing helps to keep all beverages evenly chilled.
Recommended: Indoor use only.

Home Bars and Entertainment Areas: Perfect for creating a dedicated beverage zone in your home. Its sleek black design and glass door allow it to fit perfectly into any home bar or lounge setup, offering easy access to a range of cold drinks for guests.
Commercial Settings: Ideal for bars, restaurants, and cafes that need a compact yet efficient beverage storage solution. The lockable door ensures the security of your inventory, while the adjustable shelves accommodate various bottle sizes.

Maintenance Tips

Regular Cleaning: Wipe down the interior and exterior regularly with a damp cloth and mild detergent. This helps prevent buildup and maintains a clean appearance.
Defrost as Needed: The auto-defrost function handles most of the frost buildup, but periodically check to ensure no excessive frost is forming. If necessary, defrost manually to maintain efficiency.
Check Door Seal: Ensure the door seal is clean and free from obstructions to maintain a tight seal. This will help keep the temperature consistent and reduce energy use.
Keep Proper Ventilation: Ensure there’s sufficient space around the back and sides of the cooler to allow proper airflow, especially in under-bench installations. This helps prevent overheating and maintains efficient cooling.
Avoid Overloading: Do not overload the shelves, as this can obstruct airflow and reduce cooling performance. Proper spacing helps to keep all beverages evenly chilled.
Recommended: Indoor use only.

Ideal Use Cases

Home Bars and Entertainment Areas: Perfect for creating a dedicated beverage zone in your home. Its sleek black design and glass door allow it to fit perfectly into any home bar or lounge setup, offering easy access to a range of cold drinks for guests.
Commercial Settings: Ideal for bars, restaurants, and cafes that need a compact yet efficient beverage storage solution. The lockable door ensures the security of your inventory, while the adjustable shelves accommodate various bottle sizes.
